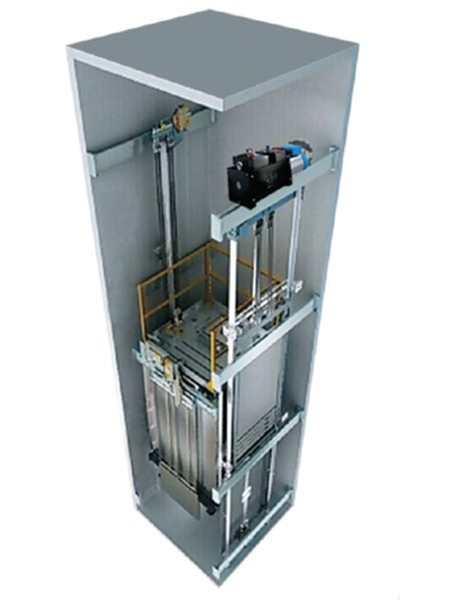

A traction elevator uses steel ropes (or belts) running over a sheave (pulley) connected to an electric motor to lift and lower the cab. The counterweight system makes traction lifts highly energy-efficient — the motor only needs to move the difference in weight between the cab and counterweight.
Traction elevators are the industry standard for high-rise buildings in Hyderabad — from luxury apartments in Kondapur and Gachibowli to commercial towers in HITEC City and government buildings across Telangana. They are available in two variants: geared traction (for mid-rise, up to ~20 floors) and gearless traction (for high-rise, 20+ floors).
At Fortune Global Elevators, our certified engineers design, install, and maintain traction lifts to IS 14665 standards. Whether you need a gearless traction elevator for a high-rise apartment or a geared traction lift for a commercial building in Hyderabad, we deliver precision-engineered solutions on schedule and within budget.

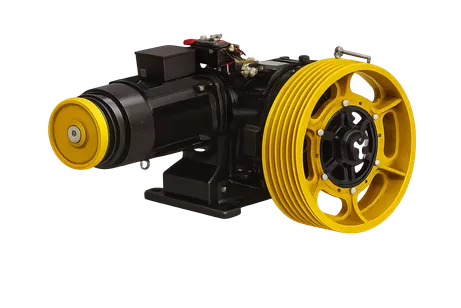

Static load : 2,200 kg
Capacity : 408 kg | 1
Reduction ratios : 1/37 – 1/46
Oil capacity : 1.71
Gearbox weight : 80 kg
Motors : 50 Hz
VVVF 4 poles : 4 kW

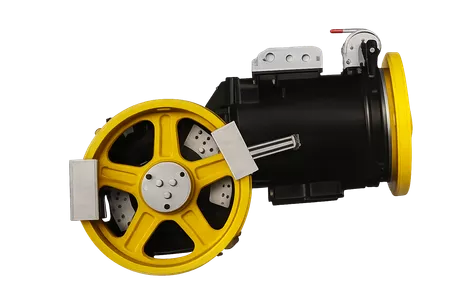

Static load : 2,200 kg
Capacity : 408 kg | 1
Reduction ratios : 1/37 – 1/46
Oil capacity : 1.71
Gearbox weight : 80 kg
Motors : 50 Hz
VVVF 4 poles : 4 kW
| Feature | Geared Traction Elevator | Gearless Traction Elevator |
|---|---|---|
| Speed | Up to 2.5 m/s | Up to 4.0 m/s + |
| Suitable Floors | Up to G+20 | G+20 to G+40+ |
| Energy Efficiency | Moderate | High (no gear losses) |
| Noise Level | Moderate | Very Low |
| Machine Room | Required (top floor) | Optional (MRL available) |
| Maintenance | Gearbox requires oil changes | Lower — no gearbox |
| Installation Cost | Lower initial cost | Higher initial cost |
| Ideal For | Mid-rise commercial & residential | High-rise towers, hospitals, premium buildings |
Gearless traction elevators can serve buildings of virtually any height, making them the only practical choice for Hyderabad's growing high-rise residential and commercial towers.
The counterweight system means the motor only works against the load difference — significantly reducing energy consumption compared to hydraulic elevator systems.
Gearless traction systems can achieve speeds of 2.5–4.0 m/s+, ensuring fast, comfortable travel even in 30–40 floor buildings — critical for high-traffic commercial buildings.
Dual-circuit braking, overspeed governor, ARD (Automatic Rescue Device), and IS 14665-compliant safety systems are standard on all traction elevator installations.
Stainless steel brushed, mirror finish, wood veneer, glass cabin walls — fully customizable to match your building's architectural language and brand identity.
IoT-enabled remote monitoring, real-time fault detection, and predictive maintenance capability available on all new traction elevator installations.
| Parameter | Specification |
|---|---|
| Drive Type | Geared / Gearless Traction |
| Load Capacity | 480 kg – 5000 kg |
| Speed | 1.0 m/s – 4.0 m/s |
| Max. Floors | G+40 and above |
| Machine Room | Top floor (standard) / MR-less option |
| Rope Type | Steel wire ropes / Flat belts |
| Control System | VVVF (Variable Voltage, Variable Frequency) |
| Door Type | Auto Centre Opening / Telescopic |
| Certification | IS 14665 | ISO 9001 | IAF |
| Applications | Residential, Commercial, Hospital, Industrial |
Get a free site survey and transparent quotation within 24 hours.
