A hydraulic elevator uses a fluid-driven piston mechanism to lift and lower the cab. A hydraulic pump pushes oil into a cylinder, raising the piston and lifting the cab; releasing the oil lowers it. This simple, robust mechanism requires no overhead machine room or top-of-shaft structure — making it the ideal choice for home lifts, villa elevators, and low-rise buildings in Hyderabad.
Fortune Global Elevators installs IS & ISO certified hydraulic lifts in Hyderabad for individual homes, row houses, duplex villas, and small commercial buildings (G+2 to G+6). Our hydraulic elevator solutions are quiet, smooth, and require minimal pit depth — making them one of the most installation-friendly options available for residential lifts in Hyderabad.
Thinking about a home lift for your villa in Jubilee Hills or Banjara Hills? Or a small building elevator in Nagole or LB Nagar? Contact us for a free hydraulic elevator site survey and quotation.

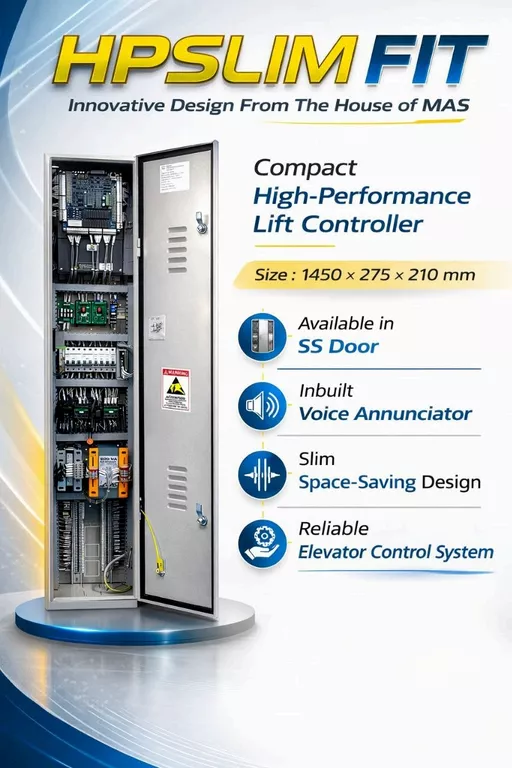

Available in
SS Door
Inbuilt
Voice Annunciator
Slim
Space-Saving Design
Reliable
Elevator Control System
| Overview | Hydraulic Elevators | Traction Elevators (With No Machine Room) |
|---|---|---|
| Noise | Noise source can be placed in the machine room far away from the shaft, such as in the basement floor. | Noise source is normally placed in the pit head, making the noise loudest on the top floor. |
| Design & Space | Smaller shaft space requirement with flexible machine room location, offering greater architectural design freedom and fewer constraints on doorways or cabin shape. | Requires additional space for the sheave assembly and counterweight, often resulting in larger shaft dimensions and limited design flexibility. |
| Safety | Simple and safe emergency evacuation procedures with no moving counterweight, making it safer during servicing and in earthquake zones. | Emergency evacuation can be more complex, with potential risks from drive components or counterweight movement during emergencies. |
| Maintenance & Service | Low-maintenance drive system with minimal wear on components and easy accessibility for servicing. | Higher wear on ropes and traction components, with longer repair times and more complex maintenance procedures. |
| Installation | Simple and cost-effective installation, especially suitable for retrofit projects and existing buildings. | Shaft-head drive systems can make installation and servicing more difficult and time-consuming. |
| Costs | Highly cost-effective for buildings up to five floors with lower service and replacement expenses. | Higher long-term maintenance and replacement part costs. |
Unlike traction elevators, hydraulic lifts require no overhead machine room or heavy top structure — making them ideal for individual homes and low-rise buildings where construction modifications are minimal.
The fluid-based drive mechanism ensures near-silent operation — perfect for residential environments where noise is a concern, including bedrooms adjacent to the lift shaft.
For buildings of 2–6 floors, hydraulic elevators offer a lower initial installation cost compared to MRL or traction systems while delivering reliable, smooth performance.
Hydraulic elevators naturally descend slowly on power failure. Combined with emergency valve systems, ARD, and door safety sensors, they meet all IS 14665 safety requirements.
The pump unit can be installed beside the shaft — not directly underneath or overhead — giving architects and homeowners maximum design flexibility in compact spaces.
Fewer mechanical components compared to traction systems mean simpler servicing. AMC plans keep your hydraulic home lift running perfectly throughout the year.
| Parameter | Specification |
|---|---|
| Drive Type | Hydraulic Piston / Screw Drive |
| Load Capacity | 200 kg – 1600 kg |
| Speed | 0.15 m/s – 0.63 m/s |
| Max. Floors | 2 – 6 Floors (G+5) |
| Pit Depth | 600 mm – 1000 mm |
| Overhead Height | No overhead structure needed |
| Machine Room | Remote pump unit (beside shaft) |
| Noise Level | Very Low |
| Door Type | Manual / Auto Sliding / Swing |
| Certification | IS 14665 | ISO 9001 | IAF |
Get a free site survey and transparent quotation within 24 hours.
